PM9801 Alarm Function Digital Electric Electrical Parameter Tester Led Display Single Phase Multi-function Power Meter

Electrical Instruments>>>Tools

Brand Name NAPUI

Certification None

DIY Supplies ELECTRICAL

Origin CN(Origin)

Dimensions 225mm*112mm*355mm

Measuring Voltage Range 3V~600V AC

Operating Temperature 0℃-40℃

Accuracy Class 0.4% + 0.1% range reading 1 words

Model Number PM9801

Measuring Current Range 5mA~20A AC

Input Voltagle AC 100-250V 45-400Hz DC 100-300V

Plug Type

UK

US

EU Plug

AU Plug

PM9801 single-phase electric parameter tester (alarm)

Product introduction

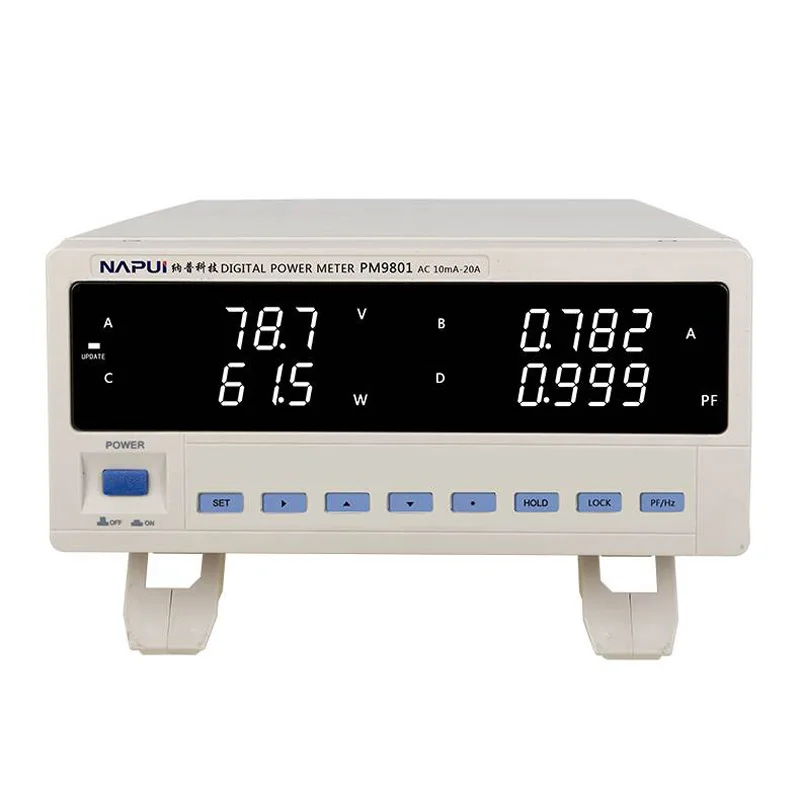

Four window shows at the same time: frequency and voltage, current, power, power factor;All measurements were Trms true effective value;The automatic range;Accuracy: 0.5;With a high immunity to external noise;Instrument 100-240V AC power supply, suitable for all kinds of used electric field;Shell is made of soft rubber material, beautiful, durable, shatter resistant;Applicable to the production line test: if the lighting products, household electrical appliances, electrical products, power products.Application field:Energy consumption test of household appliances;Energy consumption test of air conditioner;Power consumption of electrical lighting;Power test of LED lamp;Charger and switch power supply test.

Specifications:

Product Name

PM9801

Product Type

Alarm Type

Measuring Items

Voltage V, Current A, Active power W, Power factor PF, Frequency Hz

Measuring Model

Trms

Voltage Range

3V~600V AC Peak Voltage: 700V

Current Range

5mA~20A ACPeak Current: 23A

Power Range:

0.1W-12kW(U*I*PF)

Power factor Range

0.001-1.000

Range Model

A/D chip automatic conversion

Frequency Range

45-65Hz

Basic Accuracy

±(0.4%read+ 0.1%range)

Data refresh Cycle

3 tims/s

Input Impedance

2MΩ(All Voltage)

Power Supply

AC 100-240V, 45-440Hz, DC 100-300V

Communication Interface

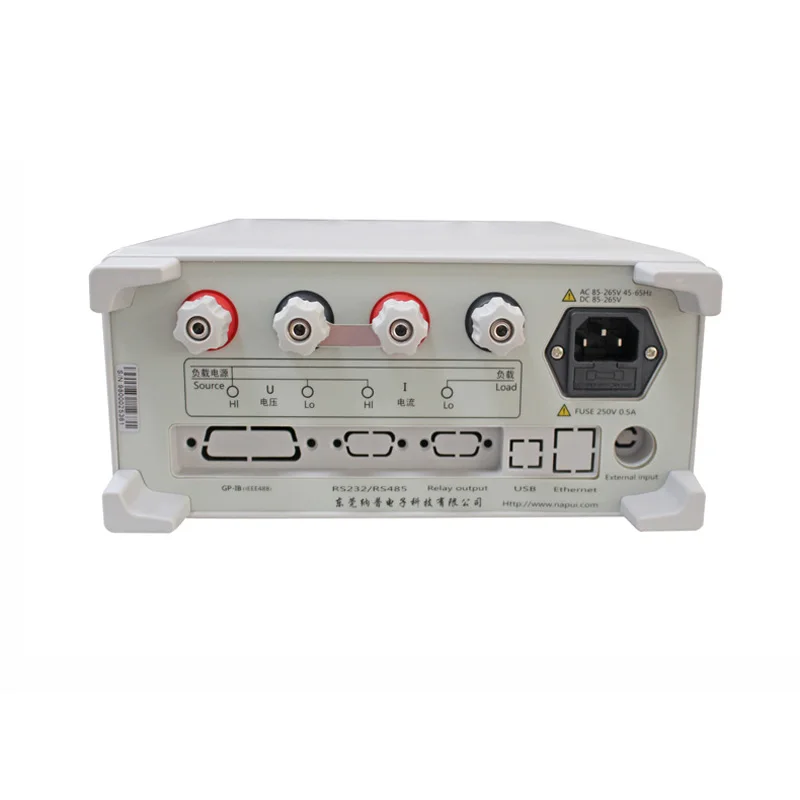

OptionalRS232 or 485,rely output function

AC/DC/RMS

AC

AD Converter

The speed is 8K/S,voltage and current simultaneous sampling

Weight

1.7KG

Dimension

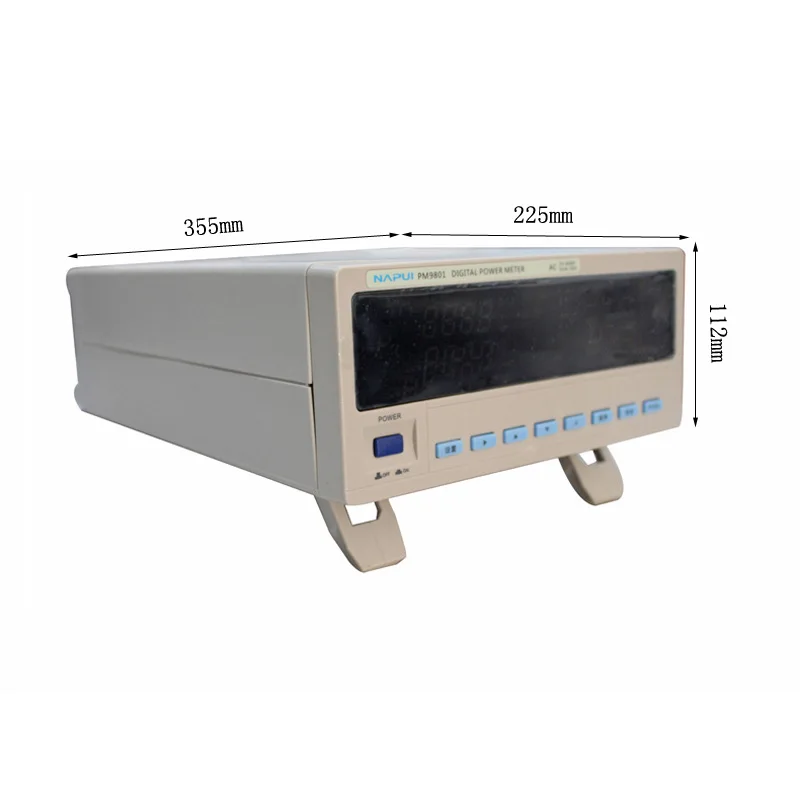

W×H×D(225mm×112mm×355mm)(Without Package)
