4PCS Corona DS-238MG/DS238MG Digital Metal Gear Servo 4.6kg / 0.14sec / 22g

Parts & Accessories>>>Toys & Hobbies

Brand Name SKYAREA

Origin CN(Origin)

Material plastic

Plastic Type PE

Tool Supplies SERVO

Upgrade Parts/Accessories swevo

RC Parts & Accs Servos

Size ----

Use Vehicles & Remote Control Toys

Technical parameters Value 2

Model Number DS238MG

Remote Control Peripherals/Devices Servos

For Vehicle Type Airplanes

Four-wheel Drive Attributes SERVO

4PCS Corona DS-238MG/DS238MG Digital Metal Gear Servo 4.6kg / 0.14sec / 22g

4PCS Corona DS-238MG/DS238MG Digital Metal Gear Servo 4.6kg / 0.14sec / 22g

4PCS Corona DS-238MG/DS238MG Digital Metal Gear Servo 4.6kg / 0.14sec / 22g

4PCS Corona DS-238MG/DS238MG Digital Metal Gear Servo 4.6kg / 0.14sec / 22g

4PCS Corona DS-238MG/DS238MG Digital Metal Gear Servo 4.6kg / 0.14sec / 22g

Color

4PCS DS238MG

4PCS Corona DS-238MG/DS238MG Digital Metal Gear Servo 4.6kg / 0.14sec / 22g

Package Included:

4pcs x CORONA DS-238MG digital servo with Servo bag

Specifications:

Model: DS238MG Operating Voltage: 4.8V / 6.0V Operating Current: 300mA / 400mA Operating Speed: 0.15sec.60º/ 0.14sec.60º Stall Torque: 4kg.cm / 4.6kg.cm Size: 29X13X30mm Weight: 22g Dead Band: ≤3uSec Operating Travel: 40º/one side pulse traveling 400us Potentiometer: 3 slider/Direct Drive Ball bearing: MR106 Gear: Metal Gear Type: Digital Motor: Brushless Connector wire: 215mm Operating Temperature Range: -20c ~ +60c Spline count: 25

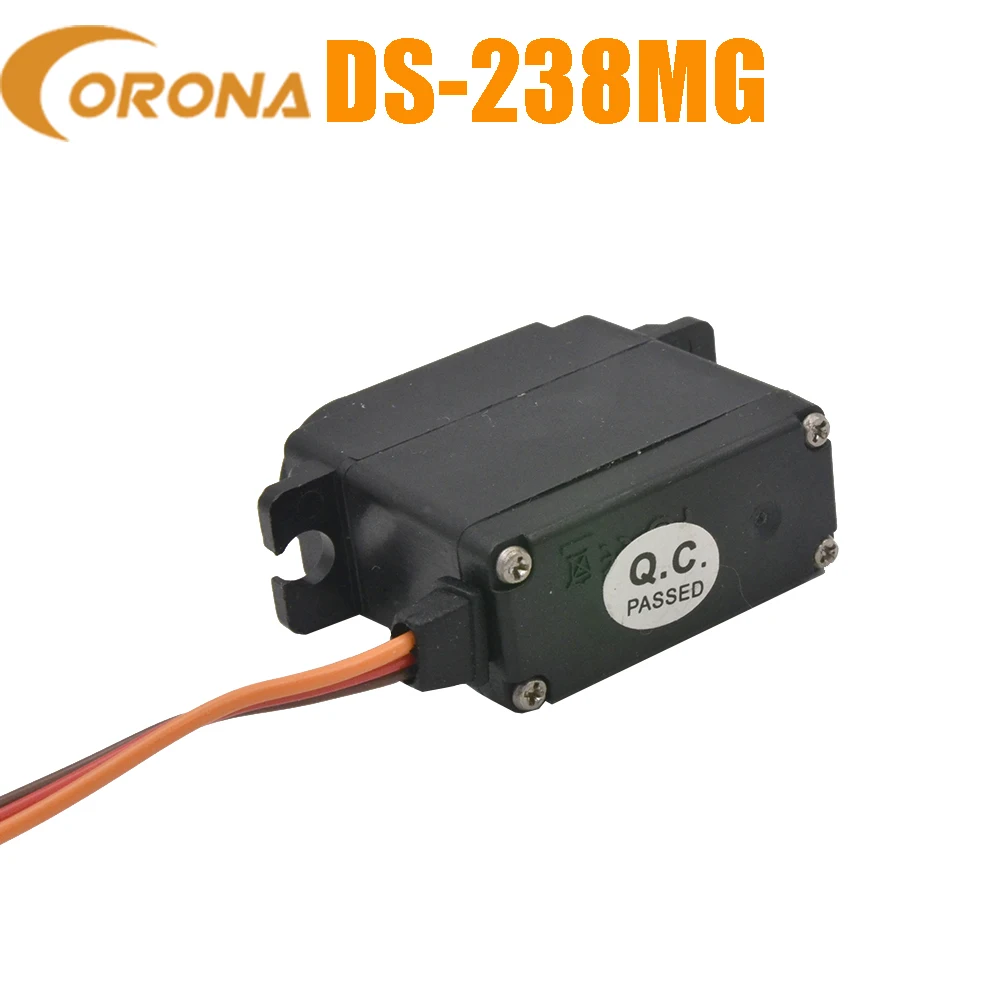

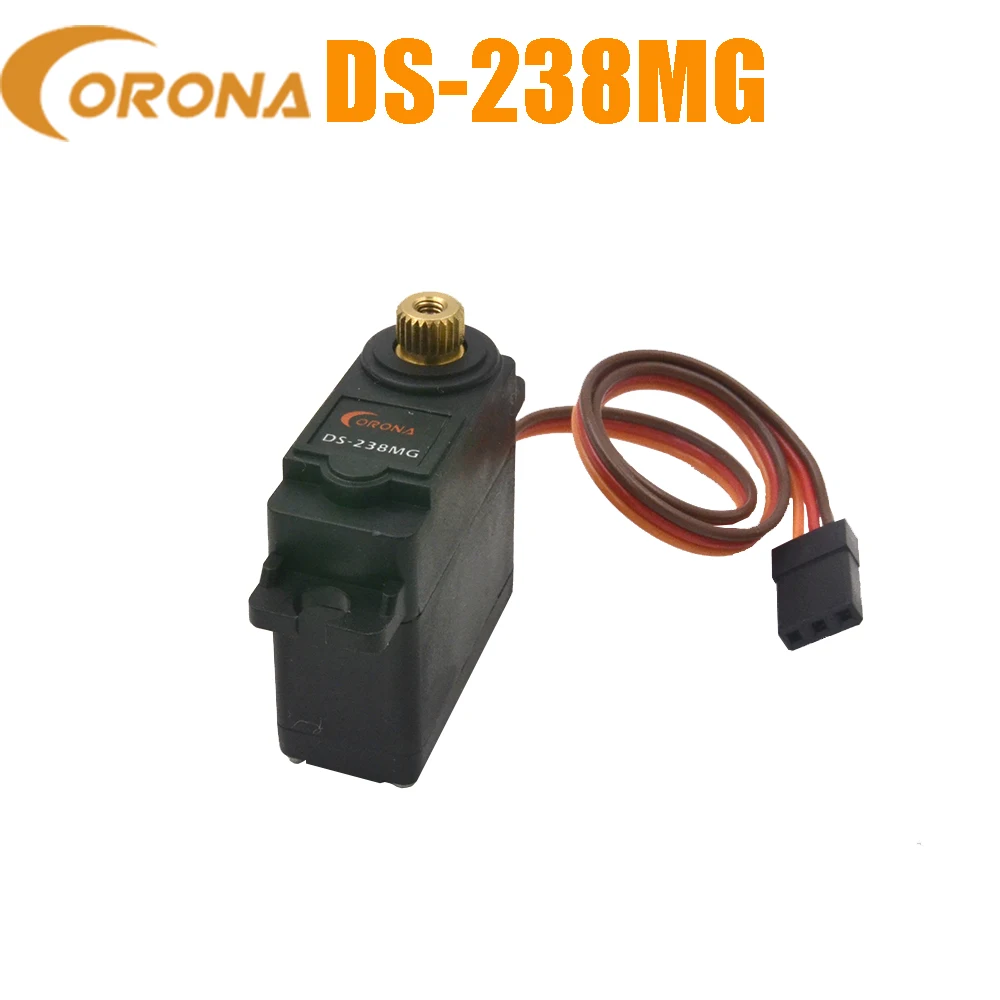

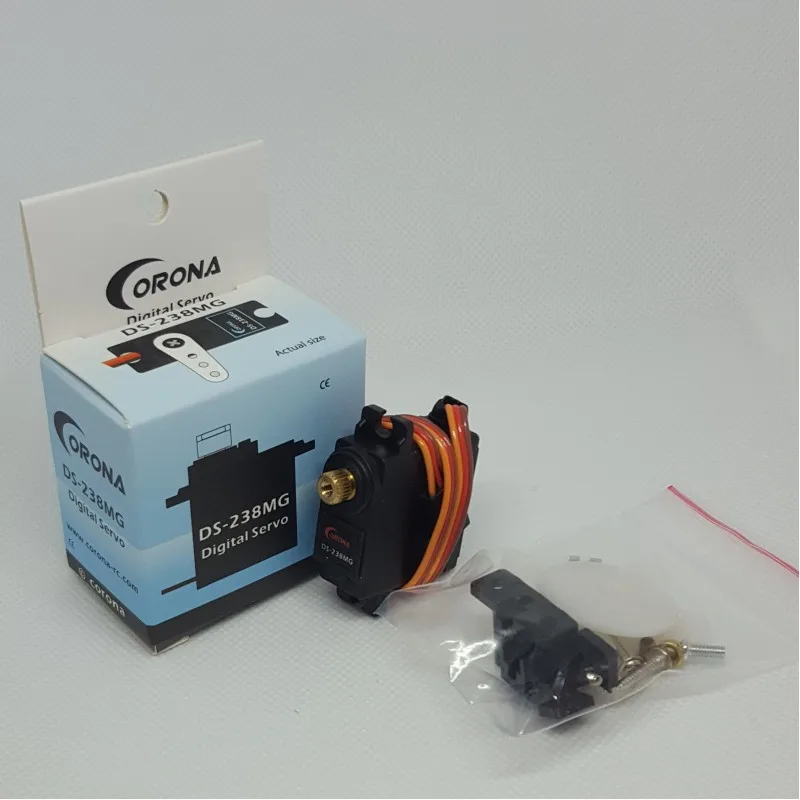

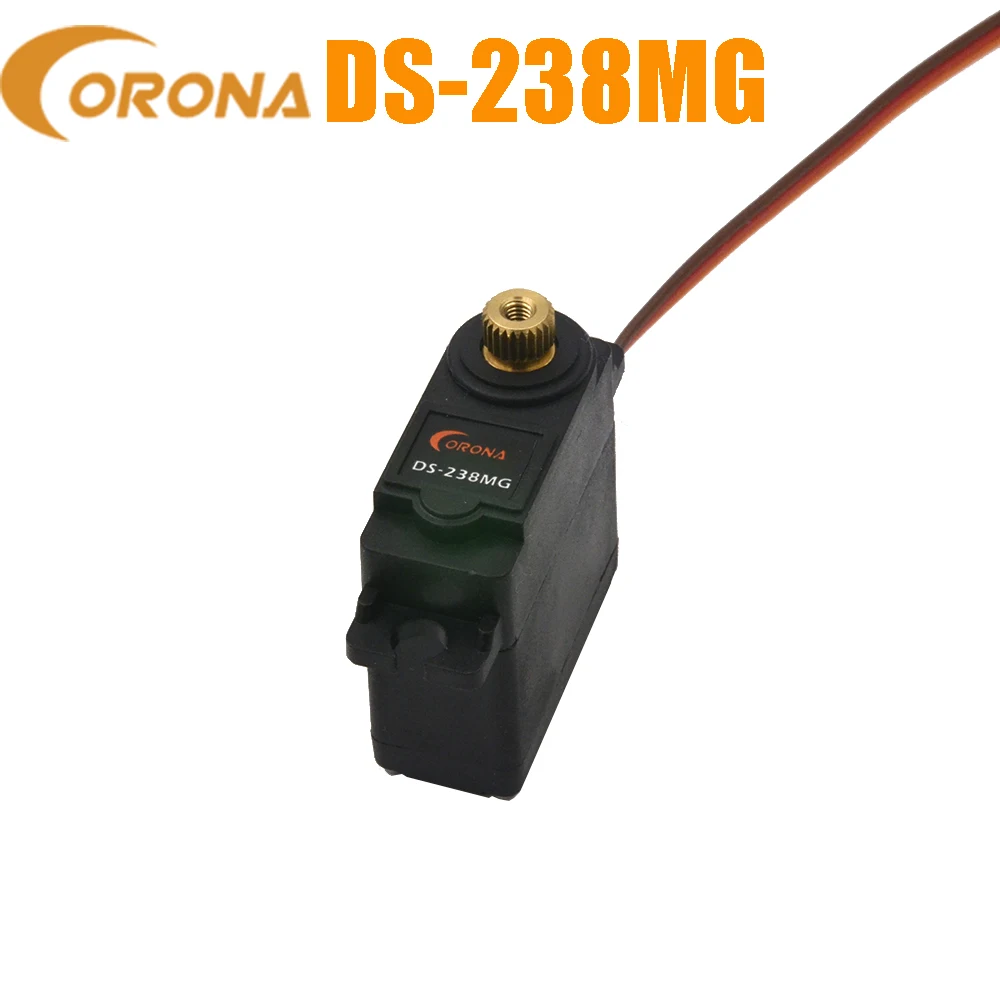

Pictures:

4PCS Corona DS-238MG/DS238MG Digital Metal Gear Servo 4.6kg / 0.14sec / 22g4PCS Corona DS-238MG/DS238MG Digital Metal Gear Servo 4.6kg / 0.14sec / 22g4PCS Corona DS-238MG/DS238MG Digital Metal Gear Servo 4.6kg / 0.14sec / 22g4PCS Corona DS-238MG/DS238MG Digital Metal Gear Servo 4.6kg / 0.14sec / 22g4PCS Corona DS-238MG/DS238MG Digital Metal Gear Servo 4.6kg / 0.14sec / 22g4PCS Corona DS-238MG/DS238MG Digital Metal Gear Servo 4.6kg / 0.14sec / 22g
