DC 5-100V LED Digital Display Round Two-wire Voltmeter DC Digital Car Voltage Current Meter Volt Detector Tester Monitor Pane

Electrical Instruments>>>Tools

Brand Name RAUVIND

DIY Supplies ELECTRICAL

Origin CN(Origin)

Certification NONE

Dimensions 33.8mm*18mm

DC 5-100V LED Digital Display Round Two-wire Voltmeter DC Digital Car Voltage Current Meter Volt Detector Tester Monitor Pane

DC 5-100V LED Digital Display Round Two-wire Voltmeter DC Digital Car Voltage Current Meter Volt Detector Tester Monitor Pane

DC 5-100V LED Digital Display Round Two-wire Voltmeter DC Digital Car Voltage Current Meter Volt Detector Tester Monitor Pane

DC 5-100V LED Digital Display Round Two-wire Voltmeter DC Digital Car Voltage Current Meter Volt Detector Tester Monitor Pane

DC 5-100V LED Digital Display Round Two-wire Voltmeter DC Digital Car Voltage Current Meter Volt Detector Tester Monitor Pane

DC 5-100V LED Digital Display Round Two-wire Voltmeter DC Digital Car Voltage Current Meter Volt Detector Tester Monitor Pane

Color

DC 5-100V LED Digital Display Round Two-wire Voltmeter DC Digital Car Voltage Current Meter Volt Detector Tester Monitor Pane Red

DC 5-100V LED Digital Display Round Two-wire Voltmeter DC Digital Car Voltage Current Meter Volt Detector Tester Monitor Pane Blue

DC 5-100V LED Digital Display Round Two-wire Voltmeter DC Digital Car Voltage Current Meter Volt Detector Tester Monitor Pane green

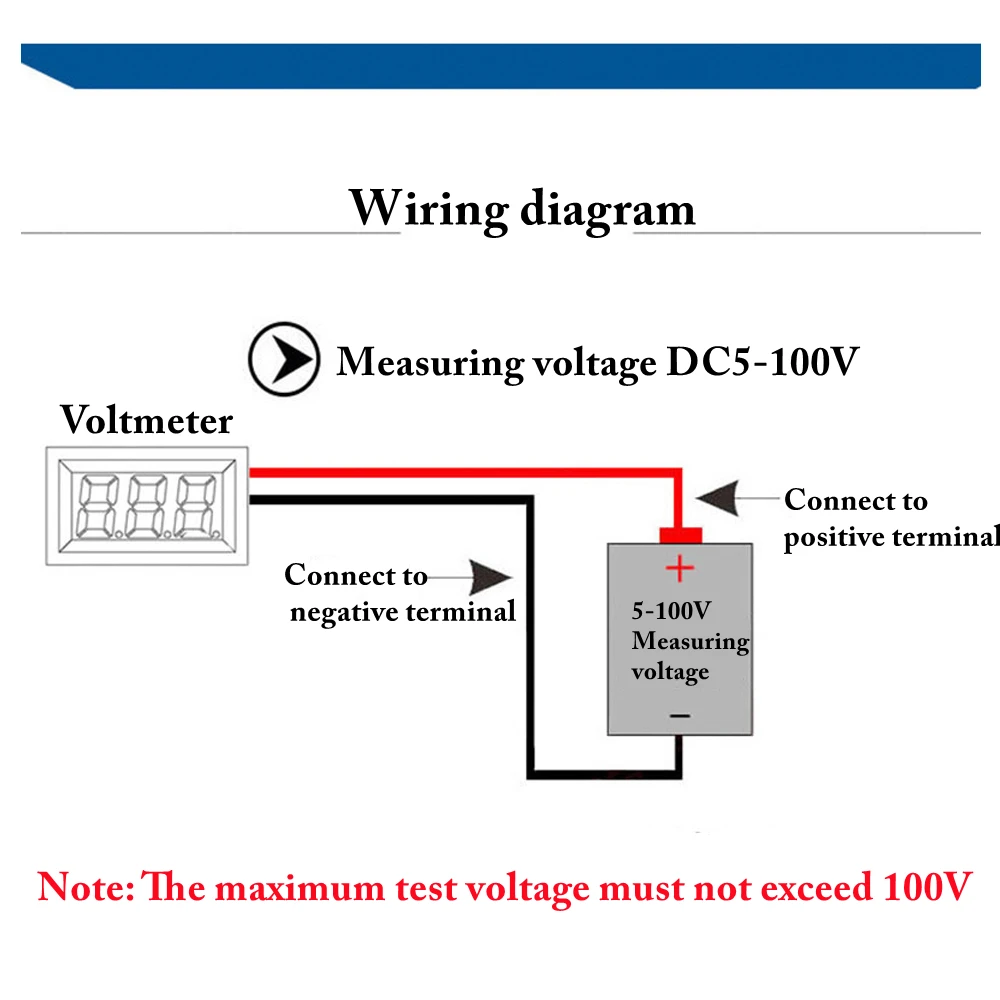

DC 5-100V LED Digital Display Round Two-wire Voltmeter DC Digital Car Voltage Current Meter Volt Detector Tester Monitor PaneDC 5-100V LED Digital Display Round Two-wire Voltmeter DC Digital Car Voltage Current Meter Volt Detector Tester Monitor PaneThe input voltage must not exceed 100V, too high a voltage will cause irreparable damage to the product.

Measuring range: 5-100V

Power supply range: 5-100V

Minimum start-up: 3.8V

Allowable error: ±1%

Input impedance: >100K ohms

Operating current: red <100mA, green <12mA, blue <12mA

Refresh speed: approx. 300mS/time

Display method: 3-digit round LED tube

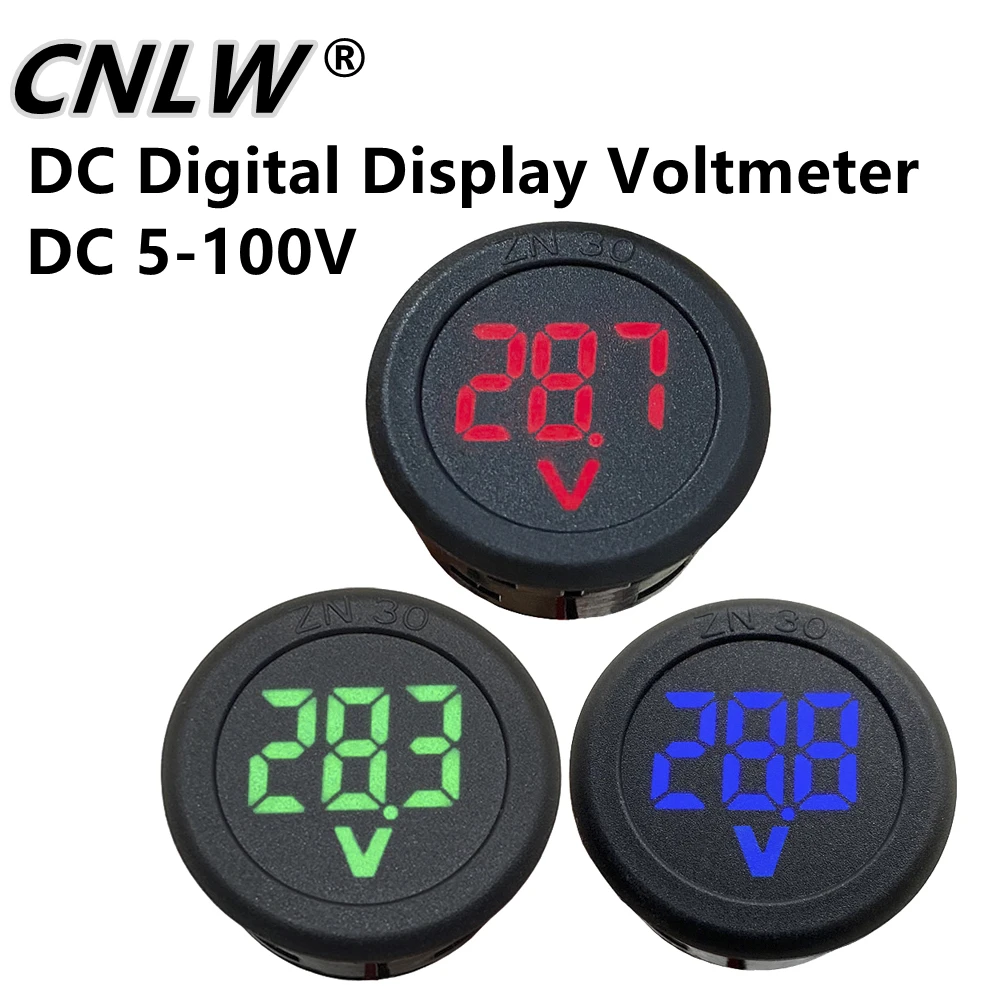

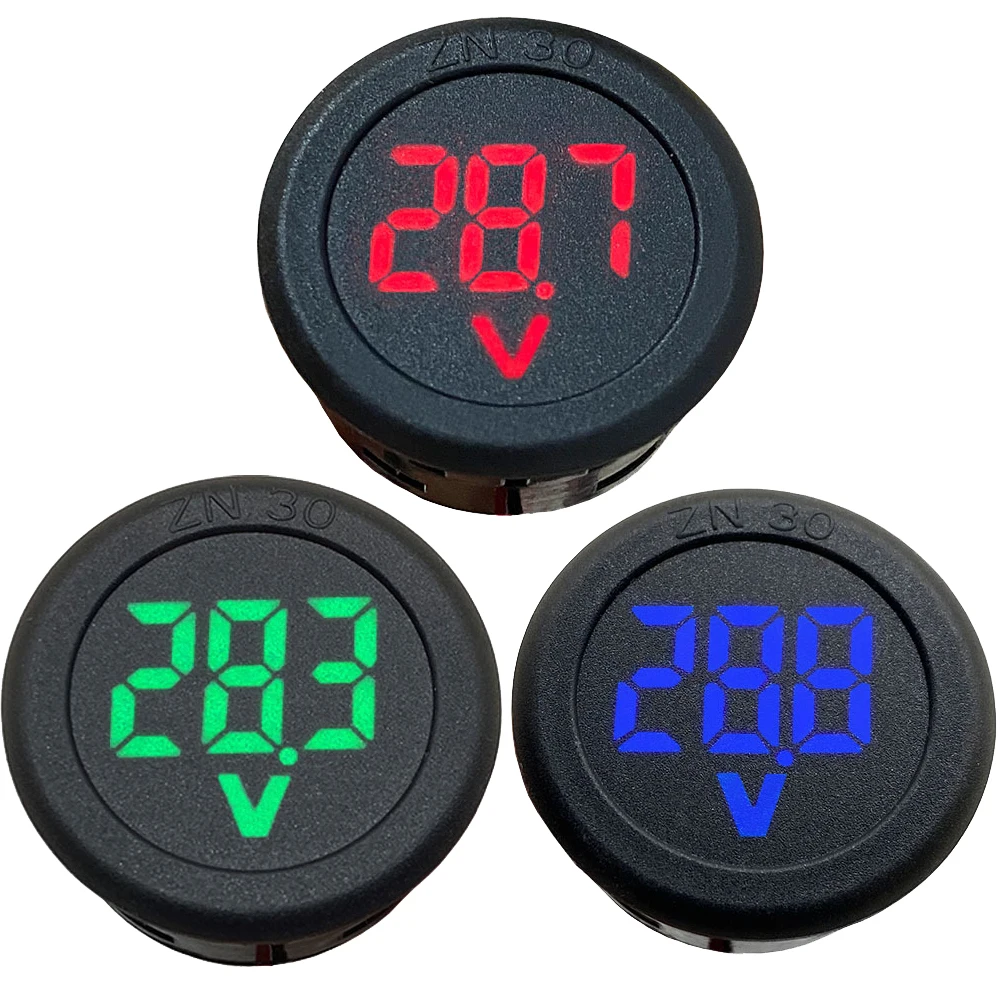

Display colour: red, green, blue optional

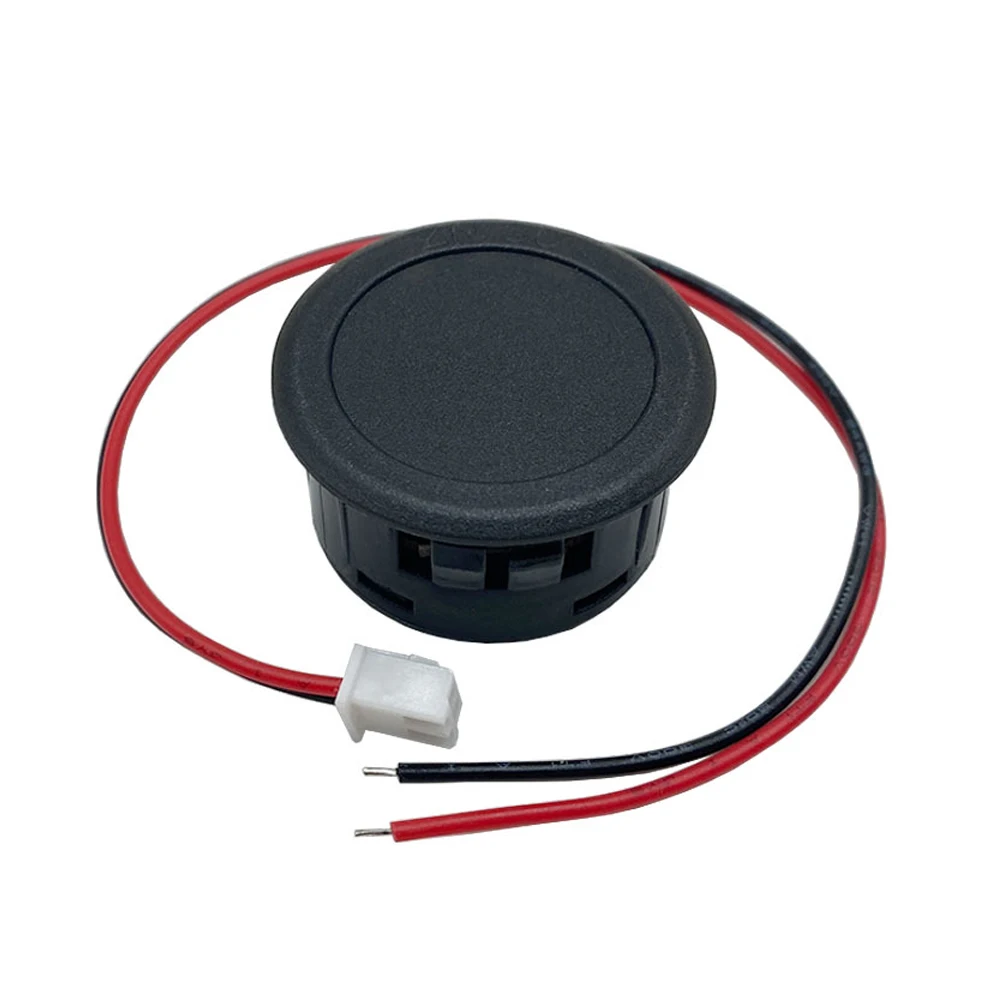

Lead wire length: 20cm

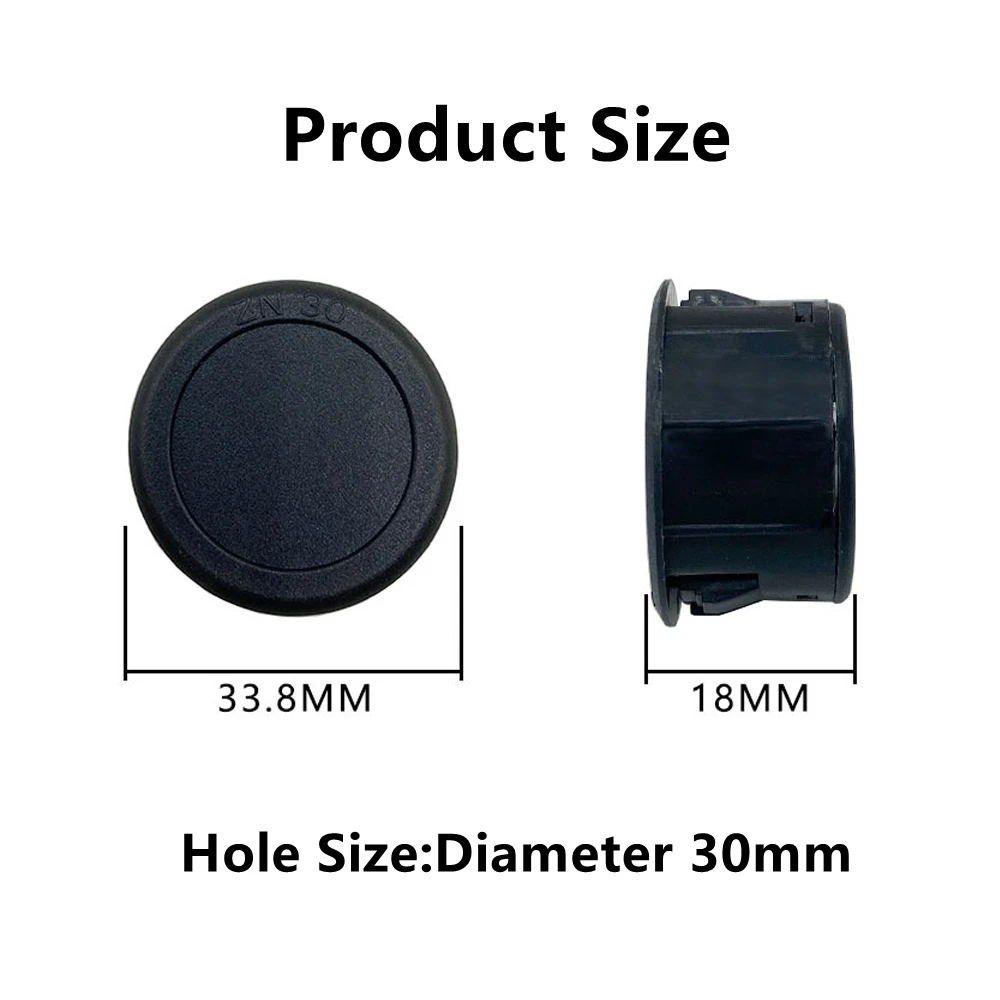

Overall dimensions: 33.8 diameter

Opening size: diameter 30.3

Operating temperature: -10℃~65℃

DC 5-100V LED Digital Display Round Two-wire Voltmeter DC Digital Car Voltage Current Meter Volt Detector Tester Monitor PaneDC 5-100V LED Digital Display Round Two-wire Voltmeter DC Digital Car Voltage Current Meter Volt Detector Tester Monitor PaneDC 5-100V LED Digital Display Round Two-wire Voltmeter DC Digital Car Voltage Current Meter Volt Detector Tester Monitor PaneDC 5-100V LED Digital Display Round Two-wire Voltmeter DC Digital Car Voltage Current Meter Volt Detector Tester Monitor PaneDC 5-100V LED Digital Display Round Two-wire Voltmeter DC Digital Car Voltage Current Meter Volt Detector Tester Monitor PaneDC 5-100V LED Digital Display Round Two-wire Voltmeter DC Digital Car Voltage Current Meter Volt Detector Tester Monitor PaneDC 5-100V LED Digital Display Round Two-wire Voltmeter DC Digital Car Voltage Current Meter Volt Detector Tester Monitor PaneDC 5-100V LED Digital Display Round Two-wire Voltmeter DC Digital Car Voltage Current Meter Volt Detector Tester Monitor PaneDC 5-100V LED Digital Display Round Two-wire Voltmeter DC Digital Car Voltage Current Meter Volt Detector Tester Monitor PaneDC 5-100V LED Digital Display Round Two-wire Voltmeter DC Digital Car Voltage Current Meter Volt Detector Tester Monitor Pane
